DESCRIPTION

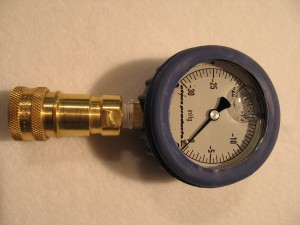

Atacs 4972/4905 gauges feature a natural brass finish case and PROTECTIVE RUBBER COLLAR for protection from harsh environments. The glycerine filling helps dampen the effects of vibration and pulsation. It also lubricates the movement which extends the life of the gauge.

SPECIFICATIONS

ACCURARY

• ± 1.5% Full Scale. ANSI Grade A

FILL LIQUID

• Glycerine and Water

DIAL RANGE

• 0-30″ Hg

ADDITIONAL PRODUCT INFORMATION

CASE

• Die Cast Brass-Natural Brass Finish

COVER RING

• Polished Brass

LENS

• Molded Plexiglass with O-Ring Seal

BOURDON TUBE

• Phospor Bronze “C” Tube for Pressures up to 600 PSI

MOVEMENT

• Brass and Nickel Silver with Highly Polish Bearing Surfaces

SAFETY PROTECTION

• Safety Relief Disc on the Top of the Case

CONNECTION

• 1/4″ NPT Die Cast with Case
